UL / EN54 Optical Smoke and Heat Detector from China manufacturer

UL / EN54 Optical Smoke and Heat Detector

Price:	5.0~12.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNC-300-C2

Production Capacity: 5000000PCS/YEAR

Delivery Date: 20 to 35days

DETECT CLASS: UL & EN Approved Optical Sm...

QUIESCENT CURRENT: 60uA

POWER SUPPLY: 10.8V to 33VDC

SENSITIVITY: UL:2.3%FT; EN 54:0.15dB/m ...

APPROVAL: EN:0086-CPD-587752 ; UL:S...

Means of Transport: Land,Air

Packing: 1pc/box, 100pcs/ctn, Or pac...

Brand Name: NUMENS

WIRING SUPPLY: 2 -Wire Polarity Insen...

ALARM CURRENT: 50mA

TEMPERATURE: -10℃ to +55℃

HUMIDITY: 0% to 95% RH No Condensatio...

IP RANG: IP 43

UL & EN Approved Optical Smoke and Heat Detector
1) Optical & thermal detection
2) Proven detection performance

SNC-300-C2

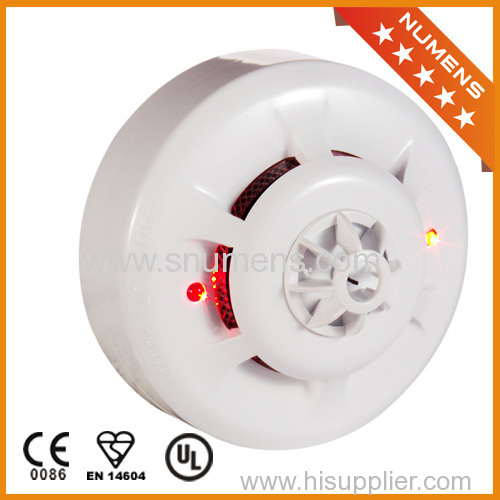

2-Wire Combined Optical Smoke and Heat Detector

Model SNC-300-C2 detectors which provide fast and reliable response for photoelectric

smoke and heat 57°C(135oF) detection.
While the smoke and heat detection circuits operate independently, their outputs being "OR' connected,
and provide the fire detection performance by acting as a smoke sensor and/or a 57°C (135oF) heat detector at the same location.

The detector may work with most modern fire alarm control panels, and can be installed with the

series 65 of Apollo together,also the series NB 338 of WIZMART and the FEOE 2000 of ZETA etc.

UL & EN Approved Optical Smoke and Heat Detector

Specification:

MODEL	SNC-300-C2
DETECTOR CLASS	Combined Smoke and Heat
SUPPLY WIRING	2 – Wire Polarity Insensitive
DESIGN STANDARD	EN 54-5/7 and UL 521&268
APPROVAL	CE ; UL
SUPPLYVOLTAGE	10.8Vto 33V DC
QUIESCENT CURRENT	60μA @24V
ALARM CURRENT	50mA@24V
TEMPERATURE RANGE	-10°C to +55°C
HUMIDITY	0% to 95% RH No Condensation
SENSITIVITY	UL:2.3%FT; EN 54:0.15dB/m;
IP RATING	IP 43
START-UP TIME	10 Seconds
DIEMENSIONS (dia. x height)	102 x 56mm (with Base)
WEIGHTS	130g (with Base)
