EN 54 & UL Certificated Optical Smoke Detector from China manufacturer

EN 54 & UL Certificated Optical Smoke Detector

Price:	5.0~12.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNC-300-SL

Production Capacity: 5000000PCS/YEAR

Delivery Date: 20 to 35days

DETECT CLASS: EN 54 & UL Certificated Opt...

QUIESCENT CURRENT: 60uA

POWER SUPPLY: 10.8V to 33VDC

SENSITIVITY: UL:2.3%FT; EN 54:0.15dB/m ...

APPROVAL: EN:0086-CPD-587752 ; UL:S...

Means of Transport: Land,Air

Packing: 1pc/box, 100pcs/ctn, Or pac...

Brand Name: NUMENS

WIRING SUPPLY: 2 -Wire Polarity Insen...

ALARM CURRENT: 50mA

TEMPERATURE: -10℃ to +55℃

HUMIDITY: 0% to 95% RH No Condensatio...

IP RANG: IP 43

UL Certificated Optical Smoke Detector with remote indicator
1)Elegant appearance,easy installation
2)Wide operating voltage

EN 54& UL Certificated Optical Smoke Detector with RemoteIndicator

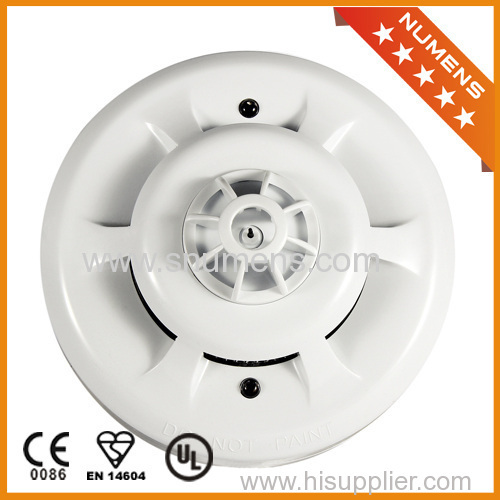

Model SNC-300-SL smoke detector uses a specialized smoke chamber design, which could

sense the presence of smoke particles produced by fast combustion or slow smoldering fire.

The detector may work with most modern fire alarm control panels, and can be installed with the

series 65 of Apollo together,also the series NB 338 of WIZMART and the FEOE 2000 of ZETA etc.
EN 54 & UL Certificated Optical Smoke Detector with Remote Indicator

EN 54 & UL Certificated Optical Smoke Detector with Remote Indicator

Features:

1) 2-Wire operation

2) Wide operating voltage

3) Advanced electronic technology

4) Proven detection performance

5) Designed to meet approvals worldwide (e.g. UL LPCB CE)

6) Sensor base: optional installation mode. (e.g. Apollo or Wizmart's wiring mode)

Features:

1)Easy installation and maintenance;

2)Durable sensor head, no need for replacement;

3)Advanced detection and discrimination algorithms;

4)Sleek and professional housing design;

5)Certificated by UL,BSI, CE;

Specification:

MODEL	SNC-300-S2
DETECTOR CLASS	Optical Smoke
SUPPLY WIRING	2 – Wire Polarity Insensitive
DESIGN STANDARD	EN 54-7 and UL 268
APPROVAL	CE; UL
SUPPLYVOLTAGE	10.8V to 33V DC
QUIESCENT CURRENT	60μA @24V
ALARM CURRENT	50mA@24V
TEMPERATURE RANGE	-10°C to +55°C
HUMIDITY	0% to 95% RH No Condensation
SENSITIVITY	UL:2.3%FT; EN 54:0.15dB/m
IP RATING	IP 43
START-UP TIME	10 Seconds
DIMENSIONS (dia. x height)	102 x 45mm (with Base)
WEIGHTS	130g (with Base)
