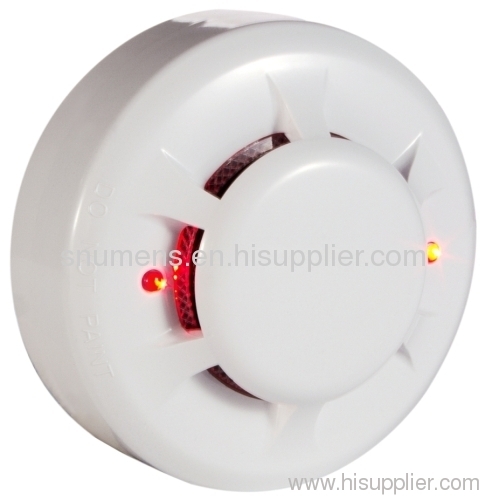

smoke detector with external relay output

Price: 5.0~13.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: SNC-300-SP
Production Capacity: 450000/Month
Delivery Date: 15~30days,depend on stock s...
Brand Name: Numens
MATETIAL: ABS/PC
POWER SUPPLY: 12V to 48V DC
ALARM CURRENT: 35mA
CYCLE TIME: 3~5 seconds
Means of Transport: Ocean,Land,Air
Packing: 1pc/box, 100pcs/ctn
Usage: Smoke
WIRING: 4-wire
MAIN MARKET: Eastern Erope,South America
QUIESCENT CURRENT: 60uA
SURGE CURRENT: 80uA

1, 4-Wire operation with
2,Wide operating voltage
3,External alarm relay output
4,Advanced electronic technology

SNC-300-SP
4-Wire Smoke Detector with External Relay Output Function
Model SNC-300-SP smoke detector uses a specialized smoke chamber design, which could sense the presence of smoke particles produced by fast combustion or slow smoldering fire.
The SNC-300-SP detectors have an external relay, provides one set of volt-free changeover (form C) contacts change state when the detector signals an alarm.
The detector will work with most modern fire alarm control panels\security systems, and meet s the requirements of UL 268 and EN 54-7.

4-Wire Smoke Detector with External Relay Output Function

Specification:
MODEL
SNC-300-SP
DETECTOR CLASS
Optical Smoke
SUPPLY WIRING
4 – WIRE
                                                                DESIGN STANDARD
EN 54-7 and UL 268NDnsensitivet)articles (0.5 to 10 mt) furnishings, PVC, plastic, foam, and e alarm signaling systems.ics technolgogy.
APPROVAL
CE; LPCB and UL Pending
SUPPLY  VOLTAGE
12V to 48V DC
QUIESCENT CURRENT
60μA @12V
ALARM CURRENT
35mA@12V
TEMPERATURE RANGE
-10℃ to +55℃
HUMIDITY
0% to 95% RH No Condensation
SENSITIVITY
UL:2.3%FT; EN 54:0.15dB/m
IP RATING
IP 43
START-UP TIME
10 Seconds
DIMENSIONS (dia. x height)
102 x 45mm (with Base)
WEIGHTS
130g (with Base)
