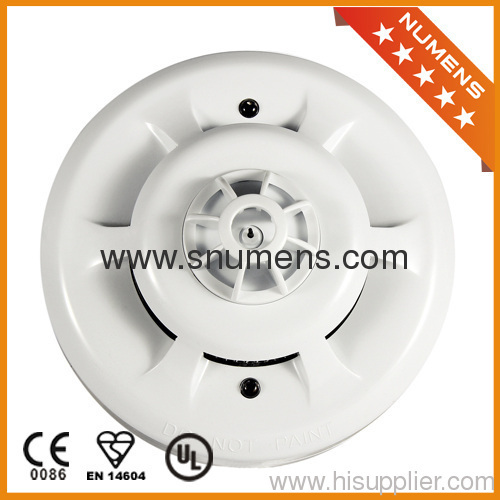

EN certificated 2 wire conventiona smoke and heat combined detector

Price: 4.0~7.0 USD
Payment Terms: T/T,L/C,
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: SNC-300-CL
Production Capacity: 5000000 Pieces per Year
Delivery Date: 30DAYS
Brand Name: Numens
Power supply:: 10.8 to 33 V DC
Alarm current: 50 mA
DETECTION: Smoke and heat
Remote LED: Remote LED output function
ALARM CURRENT: 50mA@24V
Means of Transport: Ocean,Air,
Packing: BOX PACKING; 100PCS/CTN
Usage: Fire
Wiring:: 2 wire
Quiescent current:: 60 uA
Temperature:: -10℃ to +55℃
APPROVAL: UL; CE; EN54
QUIESCENT CURRENT: 60μA @24V

SNC-300-CL detectors which provide fast and reliable response for photoelectric smoke and heat 57℃(135oF) detection. While the smoke and heat detecti

Product name:
Remote LED indicator output function 2-wire conventiona smoke and heat combined detector

SNC-300-CL detectors which provide fast and reliable response for photoelectric smoke and heat 57℃(135oF) detection. While the smoke and heat detection circuits operate independently, their outputs being "OR' connected, and provide the fire detection performance by acting as a smoke sensor and/or a 57℃ (135oF) heat detector at the same location.
The detector may work with most modern fire alarm control panels, and meet the requirement of UL and EN.
Remote LED indicator output function 2-wire conventiona smoke and heat combined detector
Base details:
Remote LED indicator output function 2-wire conventiona smoke and heat combined detector
Features:
1) 2-Wire operation
2) Optical & thermal detection
3) Wide operating voltage
4) Advanced electronic technology
5) Proven detection performance
6) Designed to meet approvals worldwide (e.g. UL EN CE)
7) Sensor base: optional installation and wirig mode.
8) UL EN CE approval
Specification:
MODEL
SNC-300-CL
DETECTOR CLASS
Combined Smoke and Heat
SUPPLY WIRING
2 – WIRE
DESIGN STANDARD
EN 54-5/7 and UL 521&268
APPROVAL
CE; EN and UL
SUPPLY VOLTAGE
10.8 to 33V DC
QUIESCENT CURRENT
60μA @24V
ALARM CURRENT
50mA@24V
TEMPERATURE RANGE
-10℃ to +55℃
HUMIDITY
0% to 95% RH No Condensation
SENSITIVITY
UL:2.3%FT; EN 54:0.15dB/m;
IP RATING
IP 43
START-UP TIME
10 Seconds
DIMENSIONS (dia. x height)
102 x 56mm (with Base)
WEIGHTS
130g (with Base)



Remote LED indicator output function 2-wire conventiona smoke and heat combined detector
Remote LED indicator output function 2-wire conventiona smoke and heat combined detector
