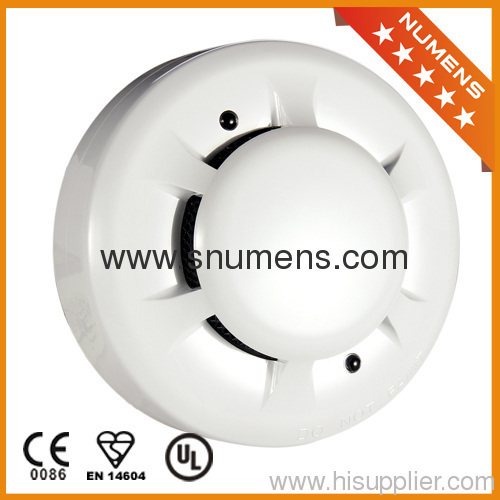

UL listing 2-wire conventional smoke detector

Price: 3.0~6.0 USD
Payment Terms: T/T,L/C,
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: SNC-300-S2
Production Capacity: 5000000 Pieces per Year
Delivery Date: 30DAYS
Brand Name: Numens
Power supply:: 10.8 to 33 V DC
Alarm current: 50 mA
DETECTOR CLASS: Photoelectronic
CIRCLE TIME: 3-5 S
ALARM CURRENT: 50mA@24V
Means of Transport: Ocean,Air,
Packing: BOX PACKING; 100PCS/CTN
Usage: Smoke
Wiring:: 2 wire
Quiescent current:: 60 uA
Temperature:: -10℃ to +55℃
APPROVAL: UL; CE; EN54
QUIESCENT CURRENT: 60μA @24V

SNC-300-S2 smoke detector uses a specialized smoke chamber design, which could sense the presence of smoke particles.

Product name:
2-wire conventional UL listed smoke detector
2-wire conventional UL listed smoke detector2-wire conventional UL listed smoke detector
SNC-300-S2 smoke detector uses a specialized smoke chamber design, which could sense the presence of smoke particles produced by fast combustion or slow smoldering fire.
The detector may work with most modern fire alarm control panels, and can be installed with the series 65 of Apollo together\also the series NB 338 of WIZMART and the FEOE 2000 of ZETA etc.
Features:
1) 2-Wire operation
2) Wide operating voltage
3) Advanced electronic technology
4) Proven detection performance
5) Designed to meet approvals worldwide
6) Sensor base: optional installation mode
7) UL EN approval
Specification:
MODEL
SNC-300-S2
DETECTOR CLASS
Optical Smoke
SUPPLY WIRING
2 – WIRE
DESIGN STANDARD
EN 54-7 and UL
APPROVAL
CE; EN and UL
SUPPLY VOLTAGE
10.8 to 33V DC
QUIESCENT CURRENT
60μA @24V
ALARM CURRENT
50mA@24V
TEMPERATURE RANGE
-10℃ to +55℃
HUMIDITY
0% to 95% RH No Condensation
SENSITIVITY
UL:2.3%FT; EN 54:0.15dB/m
IP RATING
IP 43
START-UP TIME
10 Seconds
DIMENSIONS (dia. x height)
102 x 45mm (with Base)
WEIGHTS
130g (with Base)
