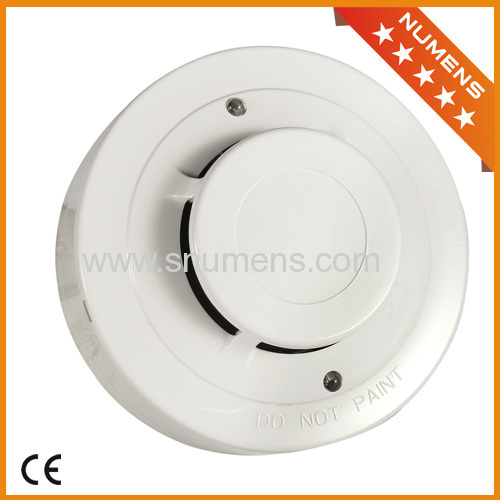

Addressable Smoke Detector with Remote Indicator from China manufacturer

Product Detail

Model No.: SNA-160-SL

Production Capacity: 5000000pcs/year

Delivery Date: 20 to 35 days

Brand Name: Numens

SUPPLY WIRING: 2-WIRE Polarity Insensitiv

QUIESCENT CURRENT: 260μA average; 500μA peak

STORAGE TEMPERATURE: -20℃ to +70℃

HUMIDITY: 0% to 95% RH No Condensatio...

DESIGN STANDARD: EN 54-7 and UL 268

Means of Transport: Ocean,Land,Air

Packing: 1pc/inner box,100pcs/master...

Usage: Smoke

DETECT CLASS: Analogue Addressable Fire D...

SUPPLY VOLTAGE: 17 to 28V DC(Plus Protocol)

ALARM CURRENT: 5mA

TEMPERATURE RANGE: -10℃ to +55℃

SENSITIVITY: UL:2.3%FT; EN54:0.15dB/m

2-Wire Addressable Smoke Detector with Remote Indicator
1) Easy installation and maintenance
2) Complies fully to EN54-5/7
3) Five-year warranty

SNA-160-SL

2-Wire Addressable Smoke Detector with Remote Indicator

ModelSNA-160-SL detector is advanced photoelectric smoke detection which is made with

an innovative and modern design, every unit is individually tested and calibrated to ensure

high reliability and prevent false alarms.

Model SNA-160-SL detectoris controlled by a microprocessor, the smoke sensitivityis

factory preset in accordance with Europe Standard EN 54-7.
2-Wire Addressable Smoke Detector with Remote Indicator

Features:

1) Easy installation and maintenance

2) Compatible with XP95 system

3) Advanced and proven electronic technology

4) Drift compensation to ensure constant sensitivity

5) Alarm flag for fast alarm reporting

Specification:
