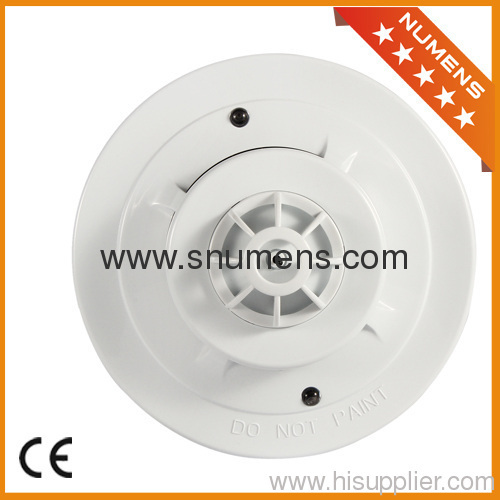

Advanced protocol analogue addressable smoke and heat combined detector from China manufacturer

Advanced protocol analogue addressable smoke and heat combined detector

Price:	10.0~15.0 USD
Payment Terms:	T/T,L/C,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNA-160-C2

Production Capacity: 100000 Pieces per month

Delivery Date: 20-30DAYS

Brand Name: Numens

Power supply:: 17 to 28 V DC plus 5-9V pro...

Alarm current:: 2 mA

DETECTOR CLASS: Addressable photoelectronic...

PROTOCOL: Versatile

ALARM CURRENT: 2mA

Means of Transport: Ocean,Air,

Packing: BOX PACKING; 100PCS/CTN

Usage: Smoke

Wiring:: 2 wire

Quiescent current:: 260 uA

Temperature:: -10℃ to +55℃

APPROVAL: CE;

QUIESCENT CURRENT: 200μA

1.Sleek and professional housing design
2.360 visibility in alarm
3.Compatible with XP95 system

Product name:
Intelligent 2-wire analogue addressable smoke and heat combined detector
Model:SNA-160-C2

Base details:
Intelligent2-wire analogue addressable smoke and heat combined detector

SNA-160-C2 intelligent addressable detector incorporates well proven sensing technologies,together with advances in materials and electronics technology,and represents the prinnacle of fire detector performance and reliability.

Features:

1) Easy installation and maintenance

2) Compatible with XP95 system

3) Advanced and proven electronic technology

4) Drift compensation to ensure constant sensitivity

5) Alarm flag for fast alarm reporting

Packing: 1pc inner box,100pcs/ctn.
Sipment: by air or by ocean
Payment: accept bank TT, LC.

Specification:

MODEL	SNA-160-C2
DETECTOR CLASS	Addressable photoelectronic Smoke and heat combined
SUPPLY WIRING	2 – WIRE
DESIGN STANDARD	EN 54-7 and UL 268
APPROVAL	CE;
SUPPLY VOLTAGE	17 to 28V DC(Plus Protocol)
QUIESCENT CURRENT	300μA average; 500μA peak
ALARM CURRENT	5mA
STORAGE TEMPERATURE	-30℃ to +80℃
TEMPERATURE RANGE	-10℃ to +55℃
HUMIDITY	0% to 95% RH No Condensation
SENSITIVITY	UL:2.3%FT; EN54:0.15dB/m
IP RATING	IP 43
CYCLE TIME	3-5 Seconds
DIMENSIONS (dia. x height)	102 x 45mm (with Base)
WEIGHTS	130g (with Base)
