2-wire Photoelectric Smoke and Heat 135°F fixed Detector from China manufacturer

2-wire Photoelectric Smoke and Heat 135°F fixed Detector

Price:	3.0~10.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNC-100-CL

Production Capacity: 250000/month

Delivery Date: 15-30days

Brand Name: numens

Power Supply: 10.8 to 33 V DC

Alarm Current: 50mA

Remote Indicator: LED red light output

IP Ranting: IP 43

Means of Transport: Ocean,Air

Packing: 1pc/box,100pcs/ctn

Usage: smoke and heat

Wiring: 2-wire

Quiescent Current: 60uA

Temperature: -10℃ to +55℃

Humidity: 0% to 95% RH No Condensatio...

OEM/ODM: welcom

1)Durable sensor head,no need for replacement
2)Anti-electromagnetic interference
3)High endurance, Fire-proof plastic
4)meet UL EN requirement

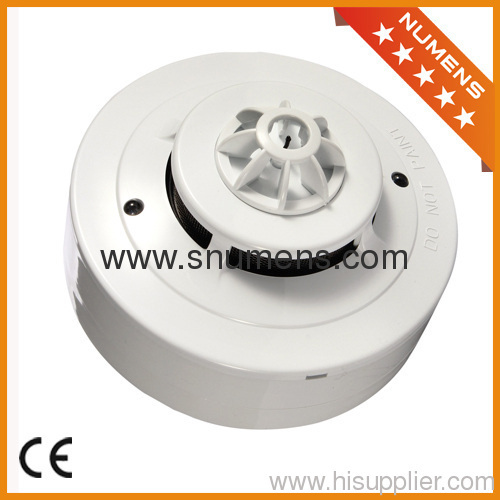

Remote LED indicator output conventional smoke and heat combined detector
Model No: SNC-100-CL

Description:
Model SNC-100-CL detectors which provide fast and reliable response for smoke and heat 57℃(135^oF) detection. While the smoke and heat detection circuits operate independently, their outputs being "OR' connected, and provide the fire detection performance by acting as a smoke sensor and/or a 57℃ (135^oF) heat detector at the same location. It may work with most modern fire alarm control panels.

Feature:
1) 2-Wire operation

2) Optical & thermal detection

3) LED display enables viewer to easily identify the current status of detector

4) Contacts material is highly acid-resistant and rust-resistant.

5) Detector has passed strict EMC test,anti-electromagnetic interference.

6) Designed to meet approvals worldwide (e.g. UL VDS CE)

7) Sensor base: optional installation mode.

Specification:

MODEL	SNC-100-CL
DETECTOR CLASS	Combined Smoke and Heat
SUPPLY WIRING	2 – WIRE
DESIGN STANDARD	EN 54-5/7 and UL 521&268
APPROVAL	CE;
SUPPLY VOLTAGE	10.8 to 33V DC
QUIESCENT CURRENT	60μA @24V
ALARM CURRENT	50mA@24V
TEMPERATURE RANGE	-10℃ to +55℃
HUMIDITY	0% to 95% RH No Condensation
SENSITIVITY	UL:2.3%FT; EN 54:0.15dB/m;
IP RATING	IP 43
START-UP TIME	10 Seconds
DIMENSIONS (dia. x height)	99 x 62mm (with Base)
WEIGHTS	130g

Sales and service:
1.Numens brand,and welcome OEM & ODM project.
2.MOQ is 1000pcs,the discount based the order quantity.
3. Protection of customer's private contact information,design and message.

Warranty: 5 years

2-wire Photoelectric Smoke andHeat 135°F fixed Detector
