4 wire output smoke and heat combined detector from China manufacturer

4 wire output smoke and heat combined detector

Price:	1.0~7.0 USD
Payment Terms:	T/T,L/C,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SNC-100-CR

Production Capacity: 100000 Pieces per month

Delivery Date: 30DAYS

Brand Name: Numens

Power supply:: 12 to 48 V DC

Alarm current: 50 mA

DETECTOR CLASS: Photoelectronic smoke and h...

RELAY: Relay output

ALARM TEMPERATURE: 57℃

Means of Transport: Ocean,Air,

Packing: 1PC INNER BOX; 100PCS/CTN

Usage: Smoke

Wiring:: 4 wire

Quiescent current:: 60 uA

Temperature:: -10℃ to +55℃

APPROVAL: CE

IP RATEING: IP43

1) 4-Wire operation
2) Optical & thermal detection
3) Built-in alarm relay
4) Wide operating voltage
5) Advanced electronic technology

Product name:

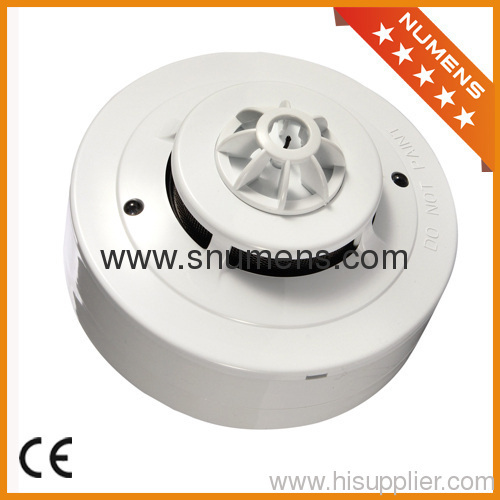

4 wire conventional relay output smoke and heat combined detector

Model No: SNC-100-CR

4 wire conventional relay output smoke and heat combined detector

Base details:
4 wire conventional relay output smoke and heat combined detector

Description:

SNC-100-CR detectors which provide fast and reliable response for smoke and heat 57℃(135^oF) detection. While the smoke and heat detection circuits operate independently, their outputs being "OR' connected, and provide the fire detection performance by acting as a smoke sensor and/or a 57℃ (135^oF) heat detector at the same location.

The SNC-100-CR detectors have a integral relay, connected between the "6" terminal and the "3" terminal, which provides one set of volt-free changeover (form A) contacts that change state when the detector signals an alarm.

The detector will work with most modern fire alarm control panels\security systems, and meet s the requirements of UL 521&268 and EN 54-5/7.

Feature:

1) 4-Wire operation

2) Optical & thermal detection

3) Built-in alarm relay

4) Wide operating voltage

5) Advanced electronic technology

6) Proven detection performance

7) Designed to meet approvals worldwide (e.g. UL VDS CE)

Specification:

MODEL	SNC-100-CR
DETECTOR CLASS	Optical Smoke
SUPPLY WIRING	4 – WIRE
DESIGN STANDARD	EN 54-7 and UL 268
APPROVAL	CE
SUPPLY VOLTAGE	12 to 48VDC;
QUIESCENT CURRENT	60μA @12V
ALARM CURRENT	35mA@12V
TEMPERATURE RANGE	-10℃ to +55℃
HUMIDITY	0% to 95% RH No Condensation
SENSITIVITY	UL:2.3%FT; EN 54:0.15dB/m
IP RATING	IP 43
START-UP TIME	10 Seconds
DIMENSIONS (dia. x height)	99 x 62mm (with Base)
WEIGHTS	130g
