2-Wire Conventional Heat Detector from China manufacturer

Product Detail

Model No.: HNC-310-H2

Production Capacity: 5000000PCS/YEAR

Delivery Date: 20 to 35days

Brand Name: NUMENS

SUPPLY WIRING: 2 -WIRE Polarity Insensitiv...

APPROVAL: CE and UL

QUIESCENT CURRENT: 40μA @24V

TEMPERATURE RANGE: -20℃ to +60℃

SENSITIVITY: 57℃,AIR

Means of Transport: Ocean,Land,Air

Packing: 1pc/box, 100pcs/ctn, Or pac...

Usage: Fire

DETECTOR CLASS: Fixed and Rate of Rise Temp...

DESIGN STANDARD: EN 54-5 and UL 521

SUPPLY VOLTAGE: 10.8V to 33V DC

ALARM CURRENT: 50mA@24V

HUMIDITY: 0% to 95% RH No Condensatio...

CE, EN, UL Approved 2-Wire Conventional Heat Detector
1) Advanced electronic technology
2) Proven detection performance

CE, EN, UL Approved 2-Wire ConventionalHeat Detector

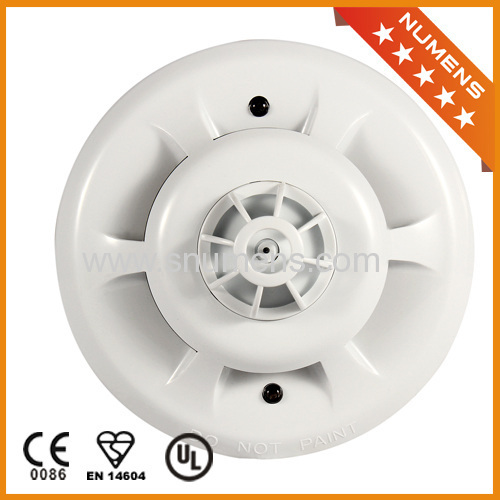

Model HNC-310-H2 fixed and rate of rise heat detectors provide fast and reliable

response for heat 57°C(135oF) detection.

The detector may work with most modern fire alarm control panels, and can be installed with

the series 65 of Apollo together,also the series NB 338 of WIZMART and the FEOE 2000 of ZETA etc.

Features:

1) 2-Wire operation

2) Wide operating voltage

3) Advanced electronic technology

4) Proven detection performance

5) UL \BSI and CE approval

Specification:

MODEL	HNC-310-H2
DETECTOR CLASS	Fixed and Rate of Rise Temperature
SUPPLY WIRING	2 – WIRE
DESIGN STANDARD	EN 54-5 and UL521
APPROVAL	CE and UL
SUPPLYVOLTAGE	10.8V to 33V DC
QUIESCENT CURRENT	40μA @24V
ALARM CURRENT	50mA@24V
TEMPERATURE RANGE	-20°C to +60°C
HUMIDITY	0% to 95% RH No Condensation
SENSITIVITY	57°C, AIR
IP RATING	IP 43
START-UP TIME	10 Seconds
DIMENSIONS (dia. x height)	102 x 56mm (with Base)
WEIGHTS	120g (with Base)
